Philcor Products

Locks
2018/02/25

New to Philcor

SPECS

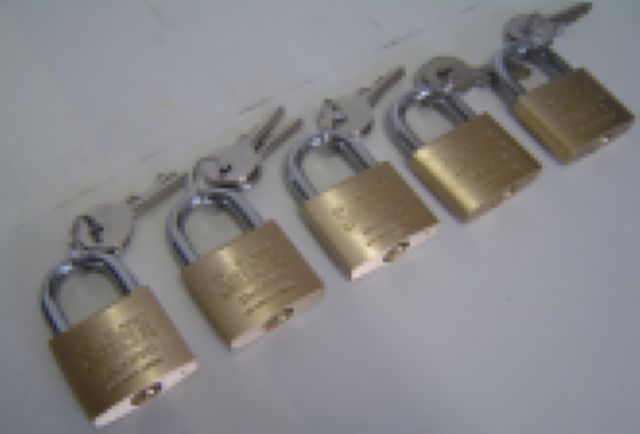

Premier 38mm Brass Padlock 5 Pin with two Keys - TOP and Bottom lock option for HT and LT Subs

Substation Hierarchy Lock Key Alike Sets

Up to 5 levels of Locks which allows lowest levels key holders access to certain areas only - Higher level Key opens all lower level locks but no higher level lock

(Special Orders Only)
