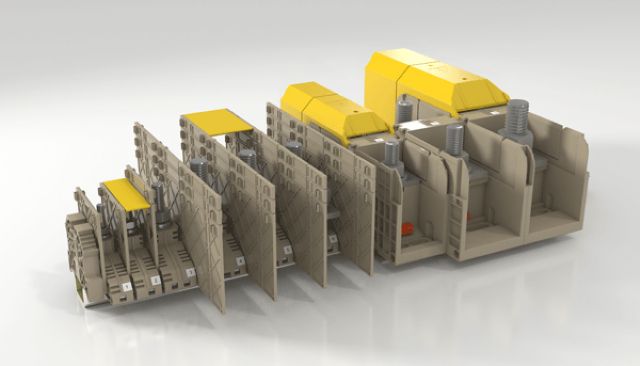

Stud terminals HSKG now UL listed
The new stud terminals from the series HSKG are now UL listed.
They were examined and certified according to their requirements. Thus the conformity to the valid US-American standards is confirmed.
Now, we are complete! CONTA-CLIP is extending its line of stud terminals with the new HSKG. We now offer a wider range of solutions for energy-transmission applications.
HSK/HSKG Features: - M5, M6, M8, M10, M12 and M16 studs - Wire with cable lug, according to DIN 46234, up to 300 mm² - Maintenance-free, subsequent tightening of the nut is not required - High contact strength and vibration resistant because of the safety/spring washer - Direct contact with cable lugs, or contact via a copper busbar - 2- and 3-pole cross-connectors, designed for the rated current of the corresponding stud terminal - Secure mount to the TS35 DIN rail - Can be mounted directly (HSKG)

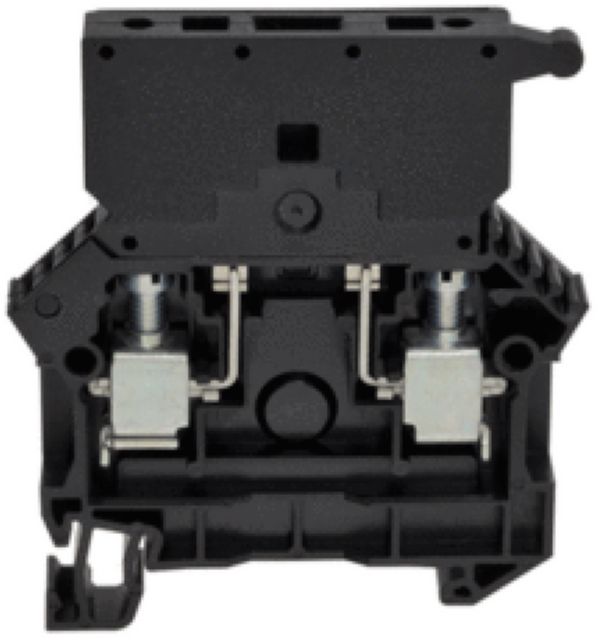

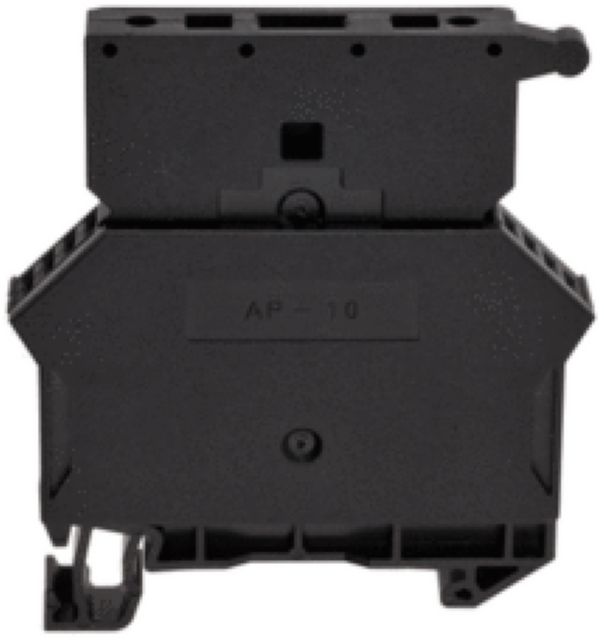

CONTA-CLIP expands its CONTA-CONNECT screwconnection system area with the new fuse disconnect terminals SIK 10 PA-G.
The SIK 10 PA-G fuse disconnect terminals, made from glass-fibre reinforced polyamide PA 6.6 V0, have an extended temperature range for the housing material up to +140 C (RTI elec.) and open up new application possibilities in electrical engineering. These products offer an interesting alternative to terminals blocks made from thermo-set duroplast, and are suitable for short-lasting high temperatures in the production process or for continuous exposure to such temperatures from nearby machines and facilities.
The fuse terminals are fitted with hinged separating levers which can be locked in their end position, and in two varieties to receive metric or imperial miniature fuses.
Features

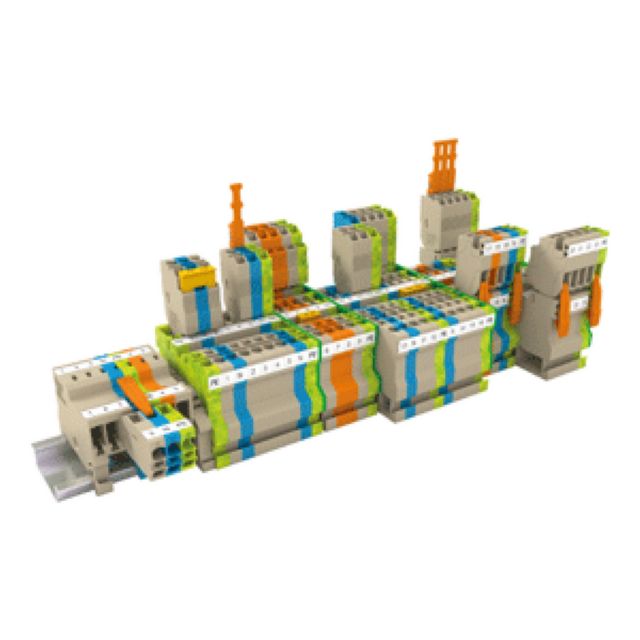

CONTA-CLIP`s modular and flexible connection technology ZST is demanded wherever off-the-shelf units need to be connected and/or replaced. Using the tension-spring connection system ZST, pluggable wiring is possible up to a rated current of 24 A, a rated voltage of 500 V, and a cross-section range of 0.5 mm² to 4 mm².
Advantages of the ZST connection:
- Quick installation and mounting
- Flexible and modular building block principle
- High level of wiring safety due to unique coding option
- Highest mechanical stability of the pluggable elements in the base terminals
Dear Valued Customer
It is with great pleasure to announce that no increase is scheduled on our
CONTACLIP RANGE of CONTA-TERMINALS, CONTA- ELECTRONICS AND CONTAPCB CONNECTORS for the foreseeable future.
We invite all our loyal customers to take advantage of this opportunity and thank you for your continued support.
Yours faithfully
Phil Meiring
Managing Member
Relay technology continues to play a large role in the reliability of industrial control and automation solutions. Because of their thin design, relay couplers find use in rail-oriented control designs.
Thanks to their features, CONTA-CLIP relay couplers are well-suited for use in secure electrical isolation of circuits or for the multiplication of contacts. Whether it is in manufacturing, electrical machine and plant instrumentation, control engineering, building automation, or process engineering, everywhere it is important to guarantee that the signal exchange between the peripheral devices and the upper-level central control and instrumentation systems remains potential-free and operationally safe.
For the Hanover Fair 2013, we have published our catalog supplements CONTA-CONNECT in which we show a number of new products in the field of electrical connectivity.
The "Supplements" featured products include, new screw type terminals up to 120mm², enclosed stud terminals from 35 to 300mm² and new fuse disconnect terminals for various fuse sizes.
Furthermore, the new printing system FMScolor documented together with the appropriate consumables
To download new products go to: http://www.conta-clip.de/en/news/detail/artikel/71/everything-under-control-from-a-distance-gsm-pro-the-m2m-remote-io-solution-kopie-2.html?no_cache=1
The new stud terminals from the series HSKG are now UL listed.
They were examined and certified according to their requirements. Thus the conformity to the valid US-American standards is confirmed.
Philcor Products in the next two weeks will be launching a few new products from various suppliers.
So keep your eyes and ears open, these products should make life easier and quicker for any Engineer or patron of the electrical game.

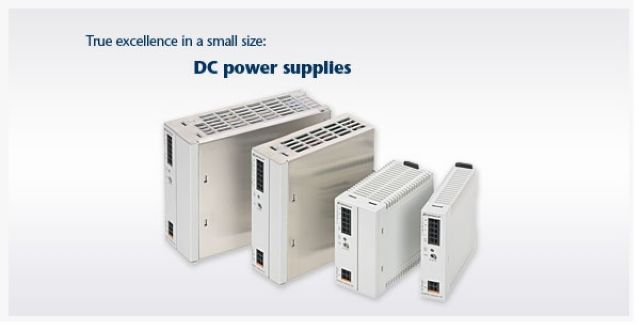

CONTA-CLIP's new generation of PSPC | PSPM switch-mode power supplies are a perfect supply solution for small controllers. Many uses are possible: variants are available with 1A, 2A, 5A and 10A of output current and an output voltage
of 24V DC.
They cover the needs of low- and mid-level power consumption ranging from 25 W to 240 W. The output voltage can be easily adjusted using the potentiometer dial located on the front side of the housing.
The primary switch-mode regulators in use ensure that there are reliable connections everywhere to the public power grids. Installation is quick and safe with their DIN rail mounting and the push-in terminal connections.
Features
CONTA-CLIP offers a wide range of cabling ducts for a variety of different installation applications. The ducts have excellent dimensional stability. They also feature tight fitting covers which are easy to snap on and off. The pegs have pre-determined breakage points so that the cable ducts can easily be modified for your cabling. They are available in various sizes and in a halogen-free version.
Fom 30mm x 30mm to 150mm x 100mm.
The GSM-PRO, like most SMS modules, are often used as stand-lone units in the field. These modules are put to use at various remote locations even though they normally have configurations which are very similar.
It is often quite helpful to have one overall view of the status of all modules used in the field. The new GSM-PRO portal software from CONTA-CLIP offers you precisely this possibility. This software is very easy to install and configure. All modules in the field can now be easily monitored and run from a single local site or control panel.
CONTA-CLIP‘s new iPhone and Android smartphone apps for the GSM-PRO modules provide a simple and fast solution so that you can get an overview of each distributed system and application.
These apps can show you the status of all inputs and outputs from one or more GSM-PRO modules. They also allow you some control over the process. Module outputs can be controlled easily and directly using this app. The app buttons provide an intuitive control interface (for controlling the heating, a motor, water pump, etc.).
Features

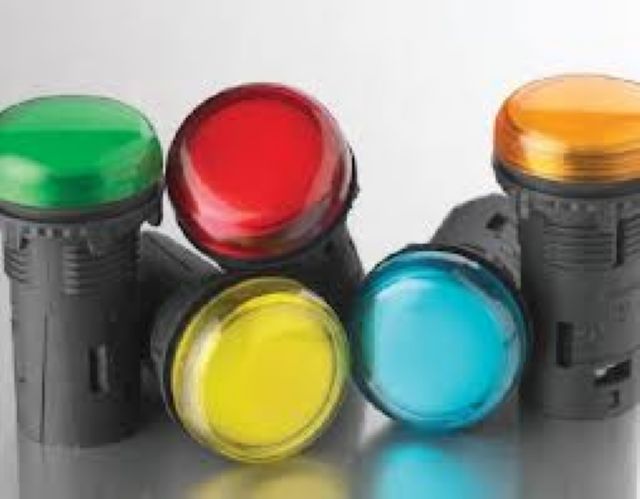

Red -Danger Act now
Yellow/Amber - Warning , Proceed with care
Green - Safety precaution: go ahead
Blue - Sit specified
Clear - No specific meaning
According to IEC 73 - Colors of liminous indicators and push buttons set out required colors as shown below in orderto conform to the machine directive.

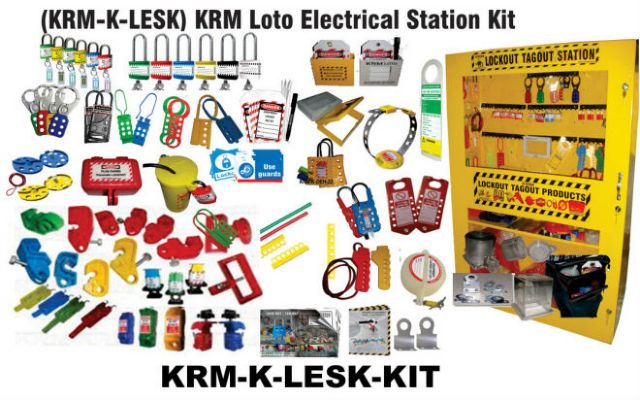

We here at Philcor are proud to announce a new range of Lock-Out devices as well as posters. Our range covers.
Please feel free to phone or email if you have any Questions

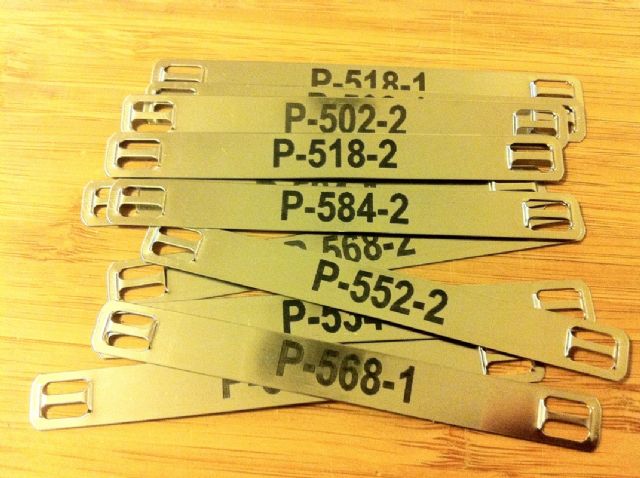

Philcor has a large variety of Stainless steel products, from stainless steel cable ties to its full marking system. There are a few options when it comes to Stainless steel cable markers, from you every day cable marker to ones that are slightly larger and allow for a bigger cable tie to pass through to dog tags and as well as stainless steel plaque.
The Cable ties come in many different sizes and materials the most popular being 304SS there are also available options like 316SS nylon coated .
Advantages of using our range of stainless steel products.

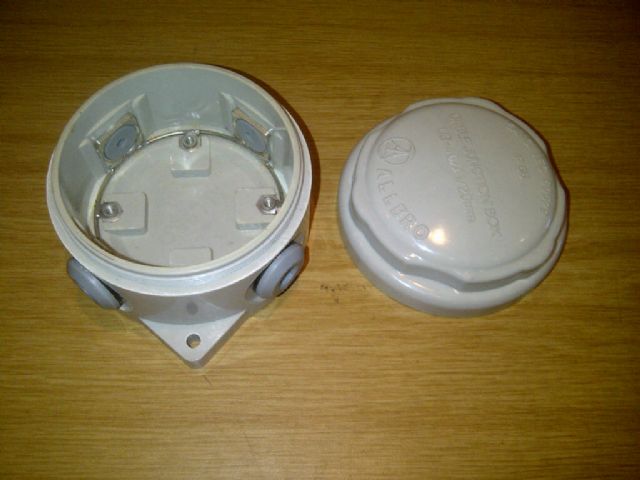

Armoured Cable 4 Way Junction box M25 IP68
Armoured Cable Junction Box is a general purpose junction box suitable for all surface applications. It is manufactured from impact, corrosion and UV resistant glass reinforced polyester compound, and this provides 1,2,3 or 4 way versatility. Screw on lid provides ease of installation.
*Image shows 20mm Junction box
Features & Benefits
No exposed metal parts
Dust and water proof to IP68 when used with approved appropriate glands
One box offers 1, 2, 3 or 4 way versatility for reduced stock holding
No drilling or tapping of cable entries required
Mounting studs provided for DIN rail terminals
Internal earth continuity ring to earth gland entries
Technical Data
Gland Material : UV Resistant Glass Reinforced Polyester Compound
Dimensions : Internal Diameter : 110mm, Internal Height : 53mm
IP Ratings : IP68
New to Philcor
SPECS

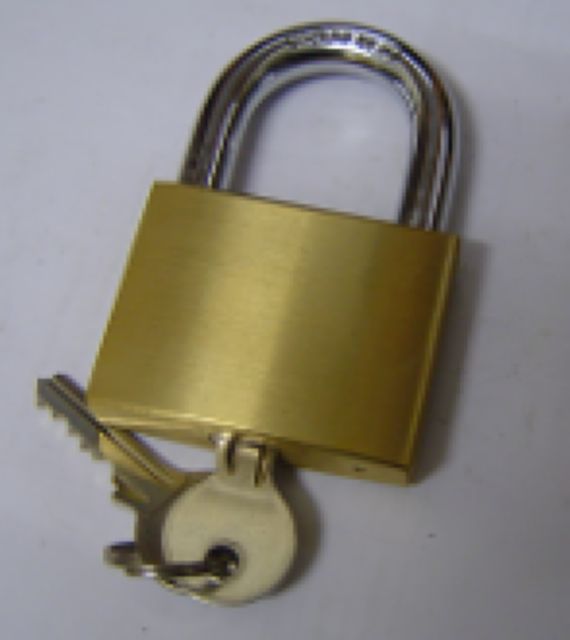

Premier 38mm Brass Padlock 5 Pin with two Keys - TOP and Bottom lock option for HT and LT Subs
Substation Hierarchy Lock Key Alike Sets
Up to 5 levels of Locks which allows lowest levels key holders access to certain areas only - Higher level Key opens all lower level locks but no higher level lock
(Special Orders Only)

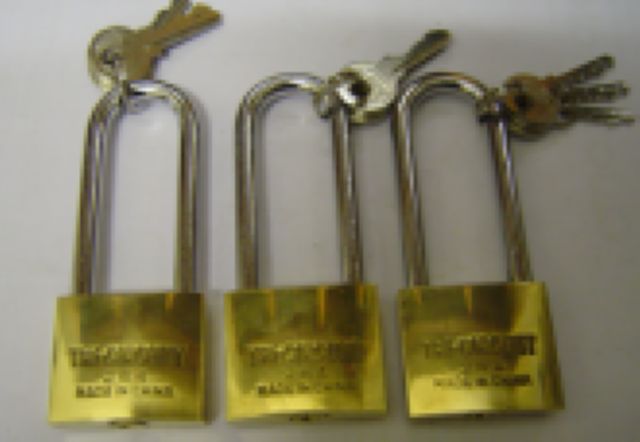

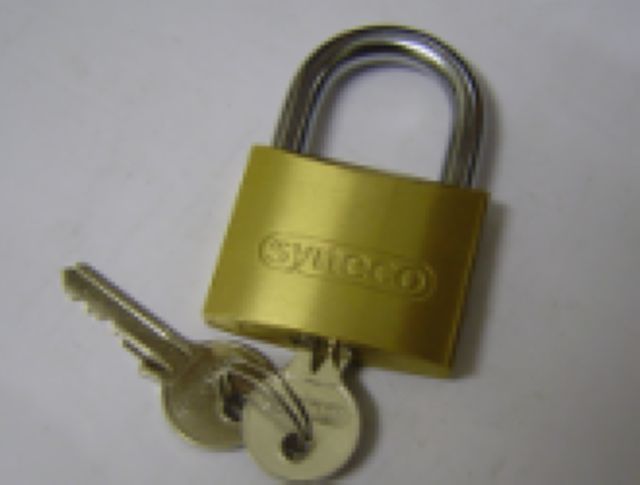

New Brass Economy Padlocks
Economy Brass Padlock regular Shackle 38mm
Economy Brass Padlock Long Shackle 50mm
Economy Brass Padlock Long Shackle 63mm
Economy Thin Brass Padlock Short Shackle 25mm
(Special Orders Only)
We are delighted to annonce Philcor will be opening a Branch in the Johannesberg area soon.
After a considerable amout out time out of the JHB area. Philcor is happy to annonce that we will be launching the following products
Conta- Clip
Panduit
Philcor Safety
Philcor Box it
Philcor Packaging does many different types of boxes and packaging to meet your packaging requirements.
From Small to large boxes.
Cape Town to Johannesburg.
Please call us for a price list and any requirement that you need.
Philcor Packaging does many different types of boxes and packaging to meet your packaging requirements.
From Small to large boxes.
Cape Town to Johannesburg.
Please call us for a price list and any requirement that you need.
Philcor Packaging as all the requirements for send or storing items
From Boxes, Bubble Wrap, Tape and much more
For Cape Town to Johannesburg
Please Contact Us for more details
